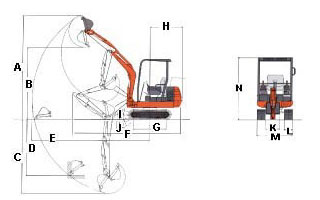

Dimensional
Specifications: |
in |
|
| |
A.
Maximum digging height |
205.3 in
|
|
| |
B. Maximum dump height |
147.4 in
|
|
| |
C. Maximum digging
depth |
134.8 in
|
|
| |
D. Maximum vertical
wall digging depth |
100.8 in
|
|
| |
E. Maximum digging
radius |
215.2 in
|
|
| |
F. Overall length |
197.2 in
|
|
| |
G. Distance between
idler sprocket centers |
64.6 in
|
|
| |
H. Rear turning radius |
55.3 in
|
|
| |
I. Maximum blade lift,
above ground |
21.1 in
|
|
| |
J. Maximum blade drop,
below grade |
11.6 in
|
|
| |
K. Bucket width |
23.2 in
|
|
| |
L. Track width |
11.8 in
|
|
| |
M. Overall width |
62.2 in
|
|
| |
N. Overall height |
91.9 in
|
|
Note: All dimensions are with rubber tracks
and four post canopy
SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE
WITHOUT
NOTICE. SPECIFICATIONS MAY VARY DEPENDING ON COUNTRY
